Telergon · Switch Disconnectors
Switch Disconnector S5 — 4P
SKU · S5-01254PR0
S5000 DC switch-disconnector for PV, 4-pole simultaneous breaking, 160A, 1000V DC, size 1 | S5 base mount switch disconnector (AC), 200A AC21, 4-pole [code duplicated across DC and AC tables]
Poles
4P
Series
S5
Current
100A
Series range
40A – 6300A
Series poles
2P-3P-3P+N
Vendor
Telergon
Category
Switch Disconnectors
Application
Industrial
Price on application
Documentation
Download the manufacturer datasheet, or contact us for 3D CAD models and certificates of conformity.
Download datasheet (PDF)Variants
Select a configuration · 7 options
Selected · S5-01254PR0 — 100A 4P
Fitting
Accessories and order codes
This item is listed against the S5 series in the Telergon catalogue, which covers 40A – 6300A.
Accessories listed for this series
- Terminal shrouds S5 — Shrouds & Barriers, 40A – 6300A
- Bridging links S5 — Auxiliary Contacts & Fittings, 40A – 6300A
- Extended shaft S5 — Handles & Shafts, 40A – 6300A
- Auxiliary contact S5 — Auxiliary Contacts & Fittings, 40A – 6300A
- Direct handle S5 — 1600A — Handles & Shafts, 40A – 6300A
- Emergency Panel handle S5 — Handles & Shafts, 40A – 6300A
Order codes
- S5-01254PR0 — 100A · 4P
- S5-02004PR0 — 160A · 4P
- S5-03154PR0 — 250A · 4P
- S5-04004PC0 — 400A · 4P
- S5-08004PC0 — 630A · 4P
- S5-06304PR0 — 500A · 4P
- S5-18004PS0 — 1250A · 4P
Quote the order code when you request a price. A switch and its accessories are separate catalogue lines, so list each one you need on the enquiry.
Related
Often specified together

Switch Disconnectors
Switch Disconnector S5 — 3P+N
S5 · 3P+N · 63A · Cage · Size 00
POA
Price on application
S5-00633NB0Telergon
Trade pricing
Switch Disconnectors

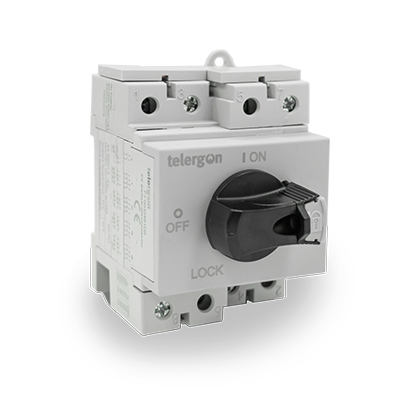

Switch Disconnector ZFV — 2P
